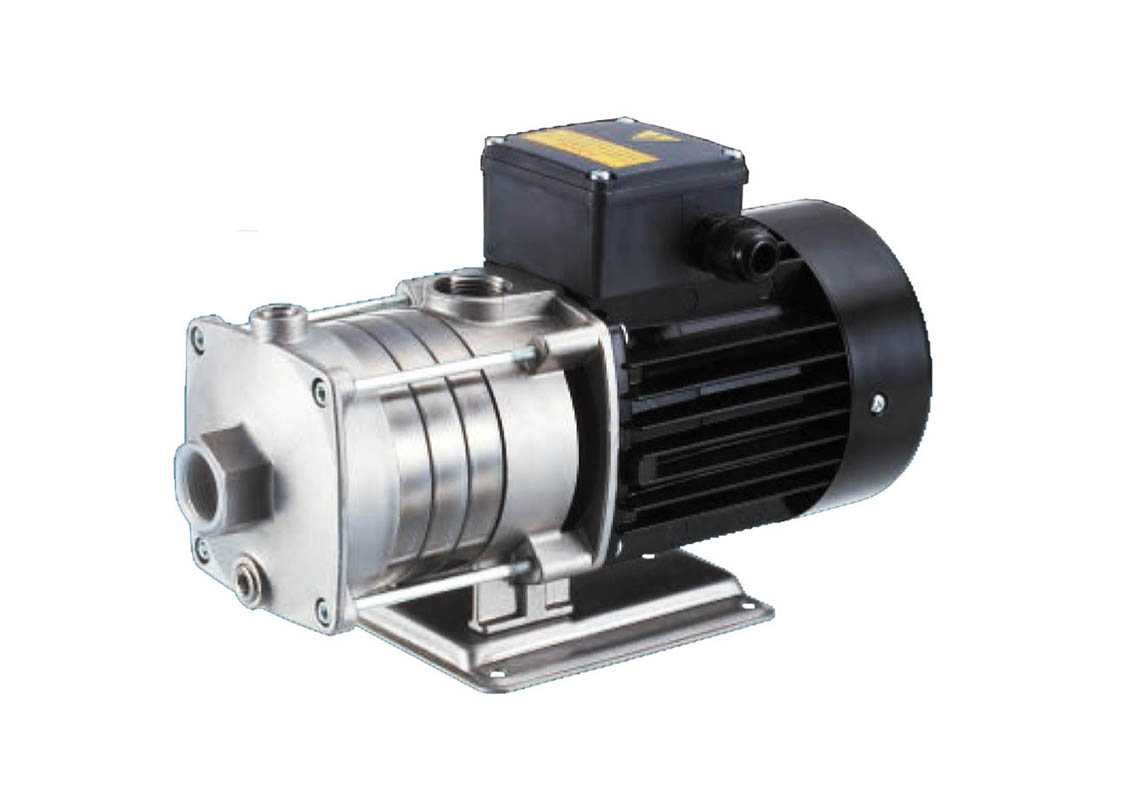

CBI 4-30 Multi-Stage Horizontal Water Pump — 2400 GPH, 1HP, 220/460 Volts, 1in. Suction, 3P
5/5
CBI 4-30 Multi-Stage Horizontal Water Pump — 2400 GPH, 1HP, 220/460 Volts, 1in. Suction, 3P
FREE SHIPPING
------
$479.53
Free Delivery
Estimated 3-5 business days
Note: If This is a heavy item (over 130 lbs) Forklift or Dock Door is required at delivery location. Otherwise Please Request Liftgate service from here:
Pump
The CB and CBI series are non-self priming, horizontal multistage centrifugal pumps. Pump is coupled with motor at the same shaft and mounted on a base-plate. The friendly design makes the pump suitable for installation in the small domestic or industrial water supply systems. The pump is fitted with a mechanical seal and through-going pump-motor shaft.
CBI: All parts of pump in contact with the liquid are made of stainless steel. EPDM or Viton O-rings are available as standard.
Applications
- Domestic
- Liquid transfer and circulation of liquids within light industry and farming
- Pressure boosting
- Air-conditioning systems
- Cooling systems or cooling machine
- Specialized OEM equipment
Motor
- The pump is fitted with a totally enclosed, fan-cooled, squirrel-cage motor. Single-phase motors have built-in thermal overload protection.
- Rated speed: 3450rpm(60Hz)
- Enclosure class: IP 54
- Insulation class: F
Operating conditions
- Liquid temperature range: 32°F ~+194°F
- Maximum ambient temperature: +104°F
- Maximum operating pressure: 52 PSI
- Maximum inlet pressure is limited by maximum operating pressure.
- Liquid: CBI : Thin, clean, slightly aggressive and non-explosive liquids without solid particles or fibres.
Estimated Delivery Time: 3 – 5 Business days
Brand: Gol Pumps
MADE IN TAIWAN
Main Categories
Pump
The CB and CBI series are non-self priming, horizontal multistage centrifugal pumps. Pump is coupled with motor at the same shaft and mounted on a base-plate. The friendly design makes the pump suitable for installation in the small domestic or industrial water supply systems. The pump is fitted with a mechanical seal and through-going pump-motor shaft.
CBI: All parts of pump in contact with the liquid are made of stainless steel. EPDM or Viton O-rings are available as standard.
Applications
- Domestic
- Liquid transfer and circulation of liquids within light industry and farming
- Pressure boosting
- Air-conditioning systems
- Cooling systems or cooling machine
- Specialized OEM equipment
Motor
- The pump is fitted with a totally enclosed, fan-cooled, squirrel-cage motor. Single-phase motors have built-in thermal overload protection.
- Rated speed: 3450rpm(60Hz)
- Enclosure class: IP 54
- Insulation class: F
Operating conditions
- Liquid temperature range: 32°F ~+194°F
- Maximum ambient temperature: +104°F
- Maximum operating pressure: 52 PSI
- Maximum inlet pressure is limited by maximum operating pressure.
- Liquid: CBI : Thin, clean, slightly aggressive and non-explosive liquids without solid particles or fibers.
Brand: Gol Pumps
MADE IN TAIWAN
More Details:
| Model | CBI 4-30 |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Suction Chamber Material
Pump Head Intermediate chamber Impeller Spacing Pipe Shaft Mechanical Seal O-ring Drain and priming plug Base plate |
Stainless Steel 304
Stainless Steel 304 Stainless Steel 304 Stainless Steel 304 Stainless Steel 304 Stainless Steel 431 Silicon carbide/Carbon EPDM Stainless Steel 304 Stainless Steel 304 |
| Port Size (in.) | 1 — 1-1/4 |
| Flow (GPH) | 2400 |
| HP
P1(w) |
1
1310 w |
| Volts | 220/460 V – Three phase – 60 Hz |
| Amps | 3.9/2.4 |
| Max. Total Head (ft.) | 121 |
| Max. Suction Lift (ft.) | — |
| Max. PSI | 52 |
| Suction Port (in.) | 1-1/4 |
| Discharge Port (in.) | 1 |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 15.5 x 5.6 x 8.1 |
| Product Weight (lbs.) | 27.9 |
