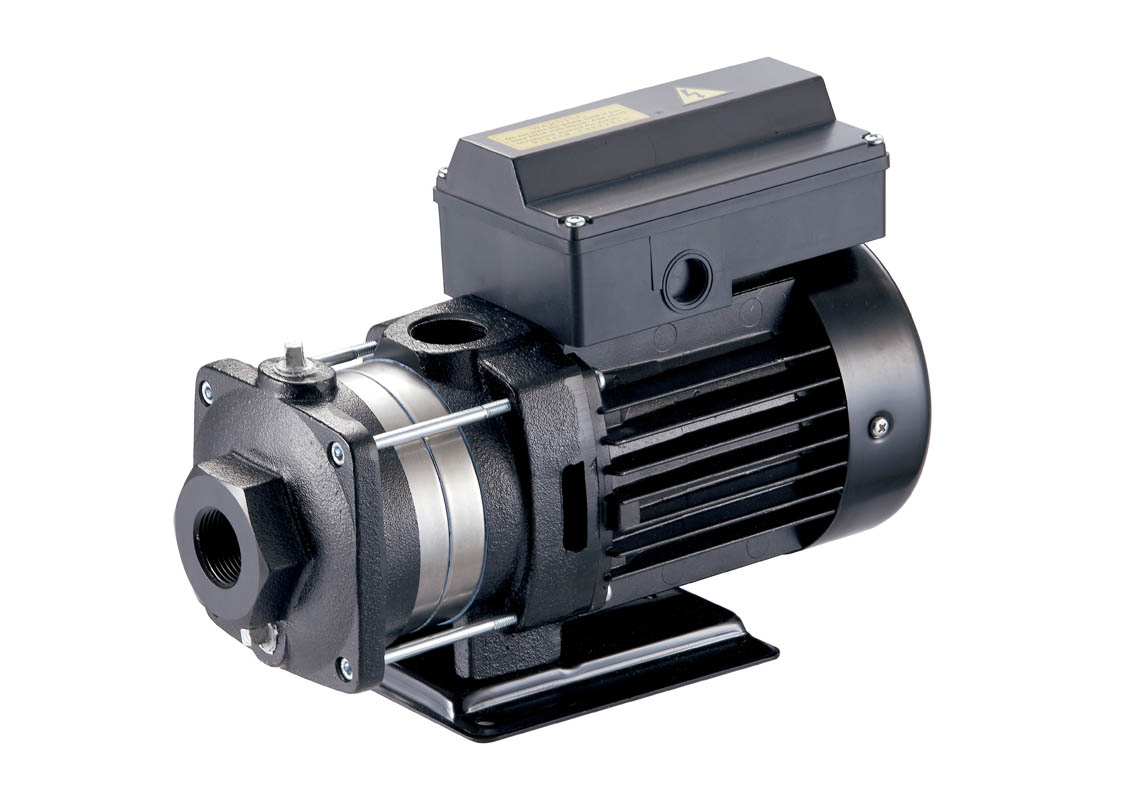

CB 2-20 Multi-Stage Horizontal Water Pump — 1062 GPH, 0.6 HP, 110/220 Volts, 1P

5/5

CB 2-20 Multi-Stage Horizontal Water Pump — 1062 GPH, 0.6 HP, 110/220 Volts, 1P

------

$345.74

Add to Cart

Free Delivery

Estimated 3-5 business days

Note: If This is a heavy item (over 130 lbs) Forklift or Dock Door is required at delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

The CB series are non-self priming horizontal multistage centrifugal pumps. Pump is coupled with motor at the same shaft and mounted on a base-plate. The friendly design makes the pump suitable for installation in the small domestic or industrial water supply systems. The pump is fitted with a mechanical seal and through-going pump-motor shaft.

The discharge and suction chamber are made of cast iron. The other parts of pump in contact with the liquid are made of stainless steel. EPDM or Viton O-rings are available as standard.

Applications

  • Domestic
  • Liquid transfer and circulation of liquids within light industry and farming
  • Pressure boosting
  • Air-conditioning systems
  • Cooling systems or cooling machine
  • Specialized OEM equipment

Motor

  • The pump is fitted with a totally enclosed, fan-cooled, squirrel-cage motor. Single-phase motors have built-in thermal overload protection.
  • Rated speed: 3450rpm (60Hz)
  • Enclosure class: IP 54
  • Insulation class: F

Operating Conditions

  • Liquid temperature range: 32°F ~+194°F
  • Maximum ambient temperature: +104°F
  • Maximum operating pressure: 142 PSI
  • Maximum inlet pressure is limited by maximum operating pressure.
  • Liquid: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibers.

Technical Data

More Details

Model CB 2-20
Material Cast Iron
Brand Gol Pumps
Manufacturer’s Warranty 1 year Limited Warranty
Ports (in.) Suction 1″
Discharge 1″
Flow (GPH) 1062
Horsepower 0.6
Voltage – Phase 110/220 – 1Ph
Amps 6.3/3.2
Max. Total Head (ft.) 85.3
Self-Priming No
Dimensions L x W x H (in.) 12.2 x 5.6 x 9
Product Weight (lbs.) 22.7

Performance Curve

Dimensions (in.)

Inlet Outlet A B1 B2 C ØD E F G H I L1 L2 L3 L4
1 1 4.3 5.6 5 5.1 0.3 3.6 6.1 5.4 9 6.3 12.2 3 2.5 4
