Centrifugal Multi-Stage PTO Tractor Pump ~ 70HP ~ JCA652-537B2
5/5
Centrifugal Multi-Stage PTO Tractor Pump ~ 70HP ~ JCA652-537B2
FREE SHIPPING
------
$4,566.99
Free Delivery
Estimated 3-5 business days
Note: If This is a heavy item (over 130 lbs) Forklift or Dock Door is required at delivery location. Otherwise Please Request Liftgate service from here:
Features
Pumps serie JCA are suitable for coupling to tractors with 70Hp, through cardan shaft. Some models can also be supplied with rotation DX or SX. Can be used for irrigation with rainers or splinkers mobile hose-reels and sliding irrigation systems. Are completely made of cast iron, with steel shaft while the gear box is oil lubricated.
Main Categories

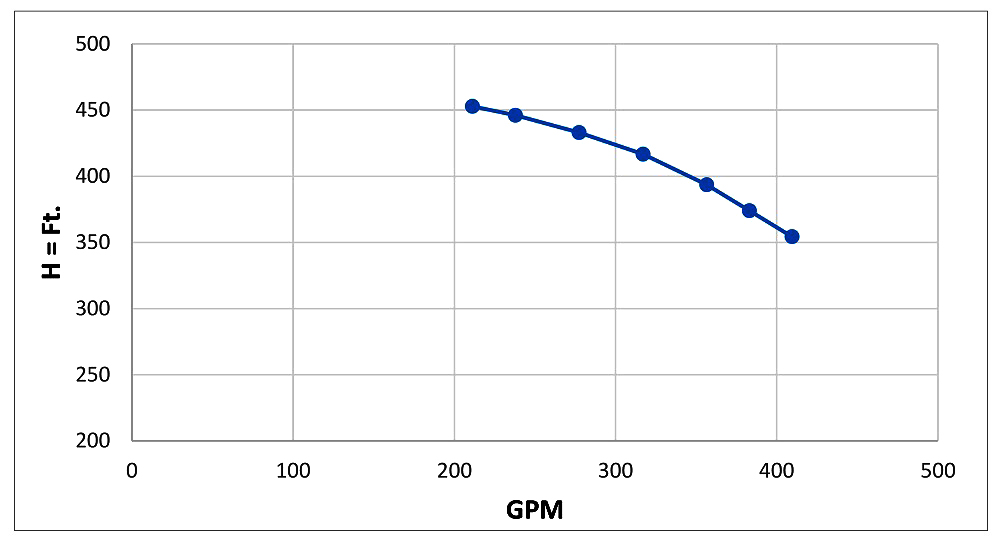

Performance Curve
| Type | Impeller | HP | R.P.M. PTO | Ratio | R.P.M. Pump | Capacity | ||||||||
| Ø (inch) | Opening (inch) | |||||||||||||
| JCA 652-537B2 | 10.2 opening: 0.4 |
8.1 opening: 0.5 |
70 | 540 | 1 : 5.37 | 2900 | Gal/Min | 211.3 | 237.8 | 277.4 | 317 | 356.6 | 383 | 409.5 |
| Ft. | 452.8 | 446.2 | 433.1 | 416.7 | 393.7 | 374 | 354.3 | |||||||
| Cv ass. | 45 | 48 | 52 | 55 | 59 | 61 | 62 | |||||||
Dimensions
| Size (inch) | Weight (lbs.) | |||||||||||||||||||||
| A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | R | S | T | V | Z | DNa | DNm | |
| 22 | 20 | 10 | 10 | 7 | 6 | 7 | 3 | 4 | 1 | 9 | 10 | 1 | 2 | 3 | 1 3/8 | 5 | 12 | 1 | 7 | 3 | 3 | 202.4 |
Parts and Materials
