Coolant Immersible Vertical Multi-Stage Water Pump — 9300 GPH, 7.5HP, 230-460V – 60 Hz – 3PH – SBK 20-3/3
5/5
Coolant Immersible Vertical Multi-Stage Water Pump — 9300 GPH, 7.5HP, 230-460V – 60 Hz – 3PH – SBK 20-3/3
FREE SHIPPING
------
$5,050.29
Free Delivery
Estimated 3-5 business days
Note: If This is a heavy item (over 130 lbs) Forklift or Dock Door is required at delivery location. Otherwise Please Request Liftgate service from here:
Pump
SBK pumps are vertical multistage centrifugal pumps especially designed for pumping of cooling lubricants for machine tools , and to be mounted on top of tanks with the pump stack immerged in the pumped liquid.
Applications
- Cooling units
- Grinding machines
- Machine centers
- Spark machine tools
- Filtering systems
- Milling machines
- Boring machines
- Drilling machines
- Filtering systems
- Swarf conveyors
- Industrial washing machines
Features
- Compact design
- High Efficiency Reliability
- Easy installation
- Flexible installation length
- Wide performance range
- Reliability
- Service-friendly
Motor Data
- SBK is fitted with totally enclosed fan-cooled, 2-pole standard motor.
- Rated speed: 3450rpm(60Hz)
- Enclosure class: IP 55
- Insulation class: F
- Ambient Temperature: Max : +122°F
Pumped Liquids
- Do not pump the explosive or aggressive liquids and the liquids should be free of fibers. The SBK pumps have the strainer in the suction chamber with inlet to prevent large particles from entering and damaging the pump.
- In order to avoid the larger particles block the filters, we suggest to filtrate elementarily before pumping the liquids with particles.
Mechanical Seals
- Standard Cartridge type mechanical seal made of Tungsten carbide / Tungsten carbide Viton.
- The cartridge type mechanical seal can be replaced in minutes without special tools and without dismantling the pump.
Estimated Delivery Time: 3 – 5 Business days
Brand: Gol Pumps
MADE IN TAIWAN
Main Categories
Pump
SBK pumps are vertical multistage centrifugal pumps especially designed for pumping of cooling lubricants for machine tools , and to be mounted on top of tanks with the pump stack immerged in the pumped liquid.
More Details:
| Model | SBK 20-3/3 |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Chamber Complete
Bearing Ring Impeller Neck Ring Priming Screw Strainer Pump Head Pump Shaft Motor stool |
Stainless Steel 304
Sic Stainless Steel 304 PTFE Stainless Steel 304 Stainless Steel 304 Cast-iron Stainless Steel 431 Cast-iron |
| Shaft seal
|
SUUV
S (O-ring seal cartilage type) U (Tungsten Carbide) V (VITON) |
| Flow (GPH) | 9300 |
| HP
Kw |
7.5
5.5 |
| Volts | 230-460 V – Three phase – 60 Hz |
| Amps | — |
| Max. Total Head (ft.) | 204 |
| Max. Suction Lift (ft.) | — |
| Max. PSI | 88 |
| Self-Priming | No |
| Centrifugal | Yes |
| Dimensions L x W x H (in.) | 12.6 x 9.2 x 29.7 |
| Product Weight (lbs.) | 158.2 |

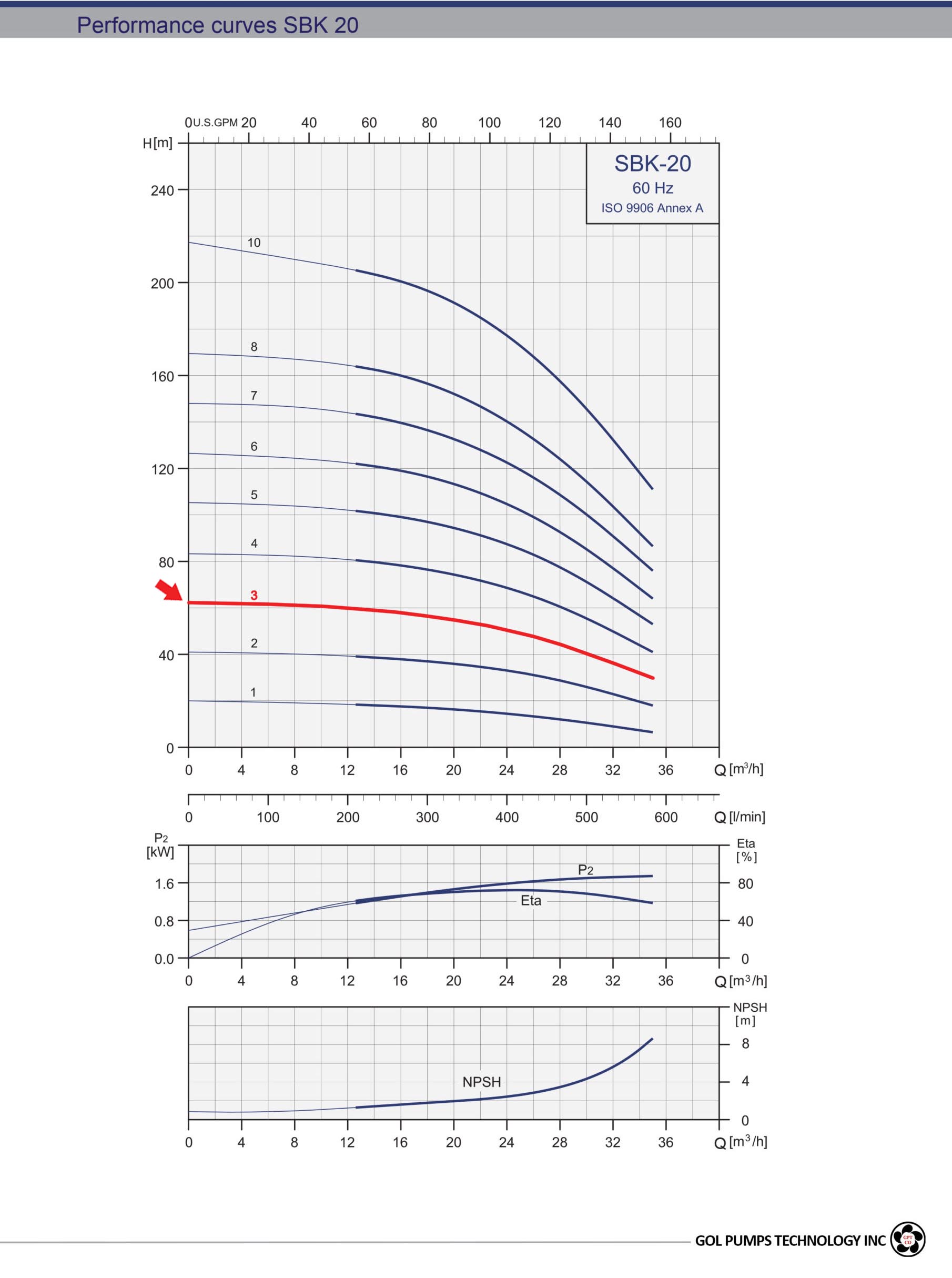

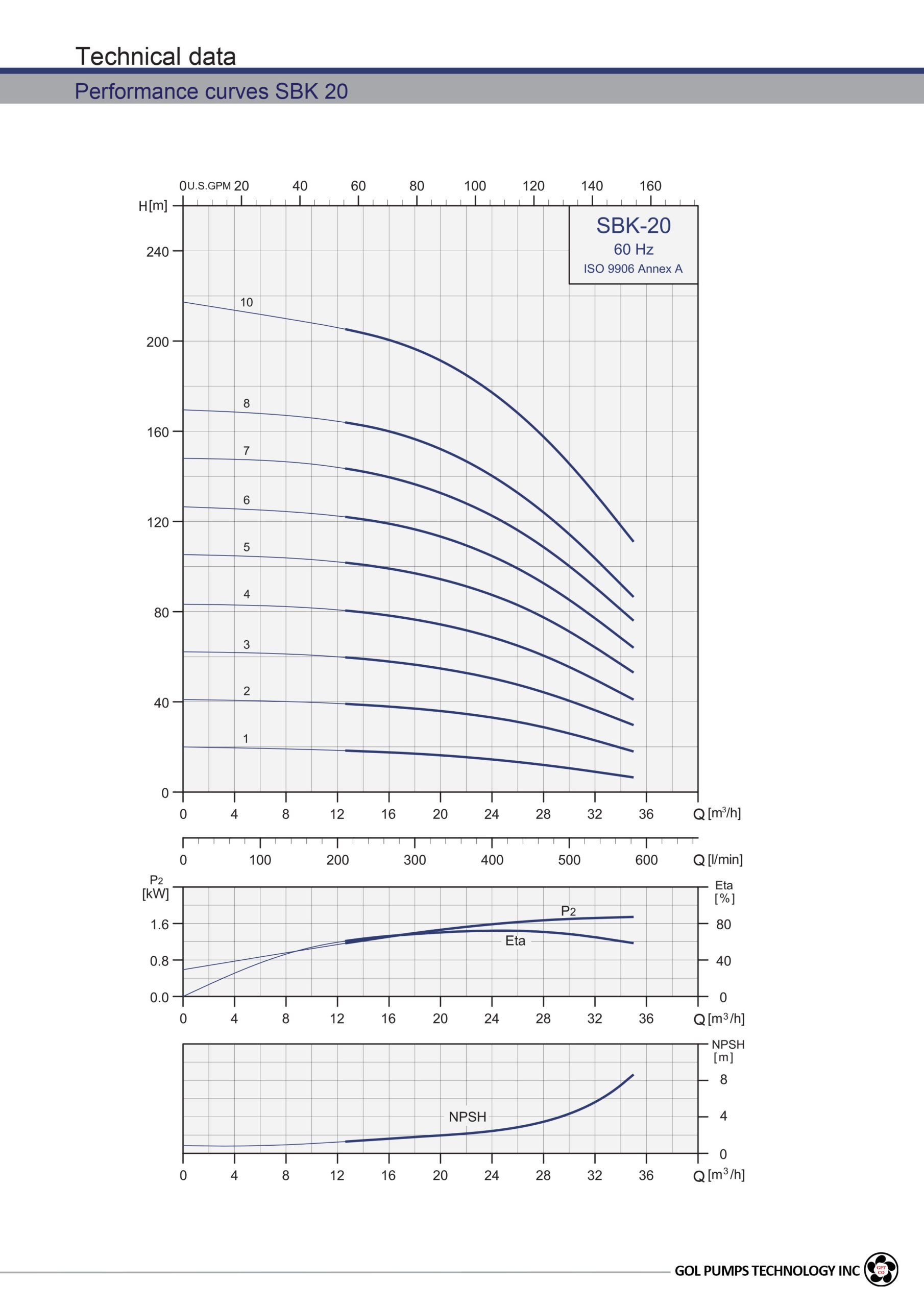

Technical Data:
Dimensions and Weights:
Applications
- Cooling units
- Grinding machines
- Machine centers
- Spark machine tools
- Filtering systems
- Milling machines
- Boring machines
- Drilling machines
- Filtering systems
- Swarf conveyors
- Industrial washing machines
Features
- Compact design
- High Efficiency Reliability
- Easy installation
- Flexible installation length
- Wide performance range
- Reliability
- Service-friendly
Motor Data
- SBK is fitted with totally enclosed fan-cooled, 2-pole standard motor.
- Rated speed: 3450rpm(60Hz)
- Enclosure class: IP 55
- Insulation class: F
- Ambient Temperature: Max : +122°F
Pumped Liquids
- Do not pump the explosive or aggressive liquids and the liquids should be free of fibers. The SBK pumps have the strainer in the suction chamber with inlet to prevent large particles from entering and damaging the pump.
- In order to avoid the larger particles block the filters, we suggest to filtrate elementarily before pumping the liquids with particles.
Mechanical Seals
- Standard Cartridge type mechanical seal made of Tungsten carbide / Tungsten carbide Viton.
- The cartridge type mechanical seal can be replaced in minutes without special tools and without dismantling the pump.
Brand: Gol Pumps
MADE IN TAIWAN
