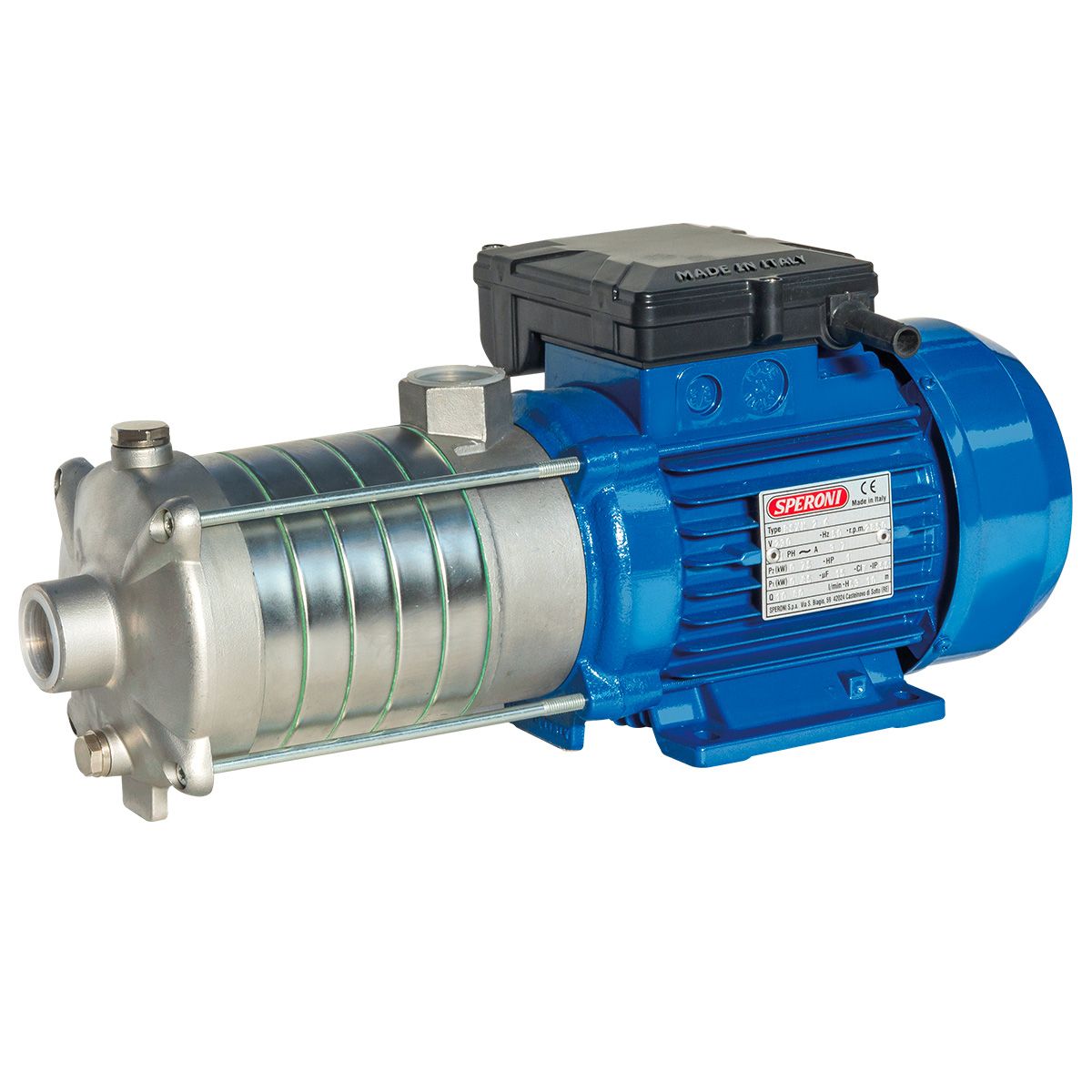

SPERONI RSXM 2-5 – Horizontal Multistage Water Pump – 1050 GPH, 1.5HP, 230V, 1P

5/5

SPERONI RSXM 2-5 – Horizontal Multistage Water Pump – 1050 GPH, 1.5HP, 230V, 1P

------

$843.10

Add to Cart

Free Delivery

Estimated 3-5 business days

Note: If This is a heavy item (over 130 lbs) Forklift or Dock Door is required at delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Features

Centrifugal horizontal multi-impeller water pumps able to develop high pressure and a high water lift with a comparatively low power consumption. Thanks to their silent running and very good features, they are suitable in domestic fittings by tank pressure groups, for small sprinkler irrigations and car washing.

Operating Conditions

  • Max working pressure: 145 PSI.
  • Liquid temperature up to 194°F.
  • Ambient temperature up to 104°F.
  • Total suction lift up to 23 ft.
  • Continuous duty.

Motor

  • Two-Pole induction motor (n = 3450 min-1).
  • Insulation Class F.
  • Protection IP 44.

Materials

  • Pump Body: Stainless Steel.
  • Motor Support: Stainless Steel.
  • Impellers: Stainless Steel.
  • Diffuser: Stainless Steel.
  • Pump Casing: Stainless Steel.
  • Shaft with rotor: Stainless Steel.
  • Mechanical seal: Graphite.

Performance Curve

Type Motor Pump
Nominal Power (P1) Input Power (P2) Volt Phase Ampere Q = Capacity
HP KW KW V PH A Gal/Min 4.4 6.6 8.8 11 13.2 15.4 17.6 22 26.4 30.8
RSXM 2-5 1.5 1.1 1.4 230V 1 6.3 Ft. 206.7 196.9 180.4 164 150.9 131.2 98.4

Dimensions

Size (inch) Weight (lbs.)
A B C D E F H H1 I DNA DNM
6.3 5.4 16 6.7 4.3 0.4 9.1 4.3 7.2 1 1 37.4
