$16,352.00 – $16,452.00
Estimated 3-5 business days
Note: If This is a heavy item (over 130 lbs) Forklift or Dock Door is required at delivery location. Otherwise Please Request Liftgate service from here:
The SBI (Stainless Steel 304), and SBN (Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBI and SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.
WATER SUPPLY AND PRESSURE BOOSTING
IRRIGATION AND AGRICULTURE
HEATING, VENTILATION AND AIR-CONDITIONING
|Manufacturer’s Warranty||1 year Limited Warranty|
|Material||Stainless Steel 304|
|Port Size (in.)||5|
|Max Flow (GPH)||48000|
|Max. Total Head (ft.)||302|
|Max. Suction Lift (ft.)||N/A|
|Suction Port (in.)||5|
|Discharge Port (in.)||5|

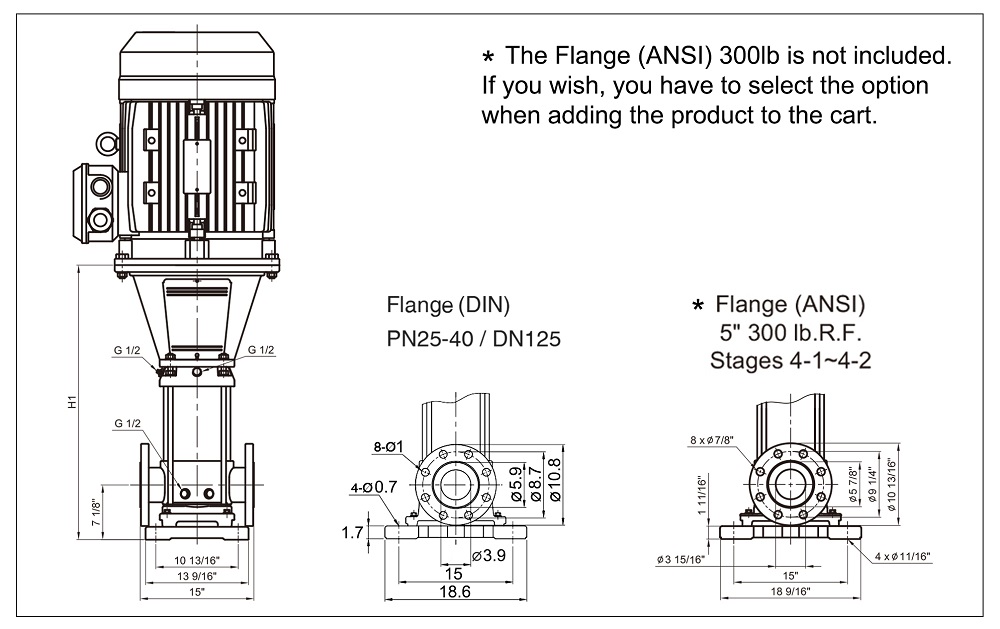

|Dimensions L x W x H (in.)||15 x 18.6 x 39.2|
|Product Weight (lbs.)||–|
|60Hz||Motor P2||Nominal current (A)||Dimension [mm]||Net weight [kg]|
|Three phase||DIN flange||Port Size||D1||D2||DIN flange|
SB (I, N) pumps can handle a wide variety of liquids, each with its own characteristic.
