The SBI pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.

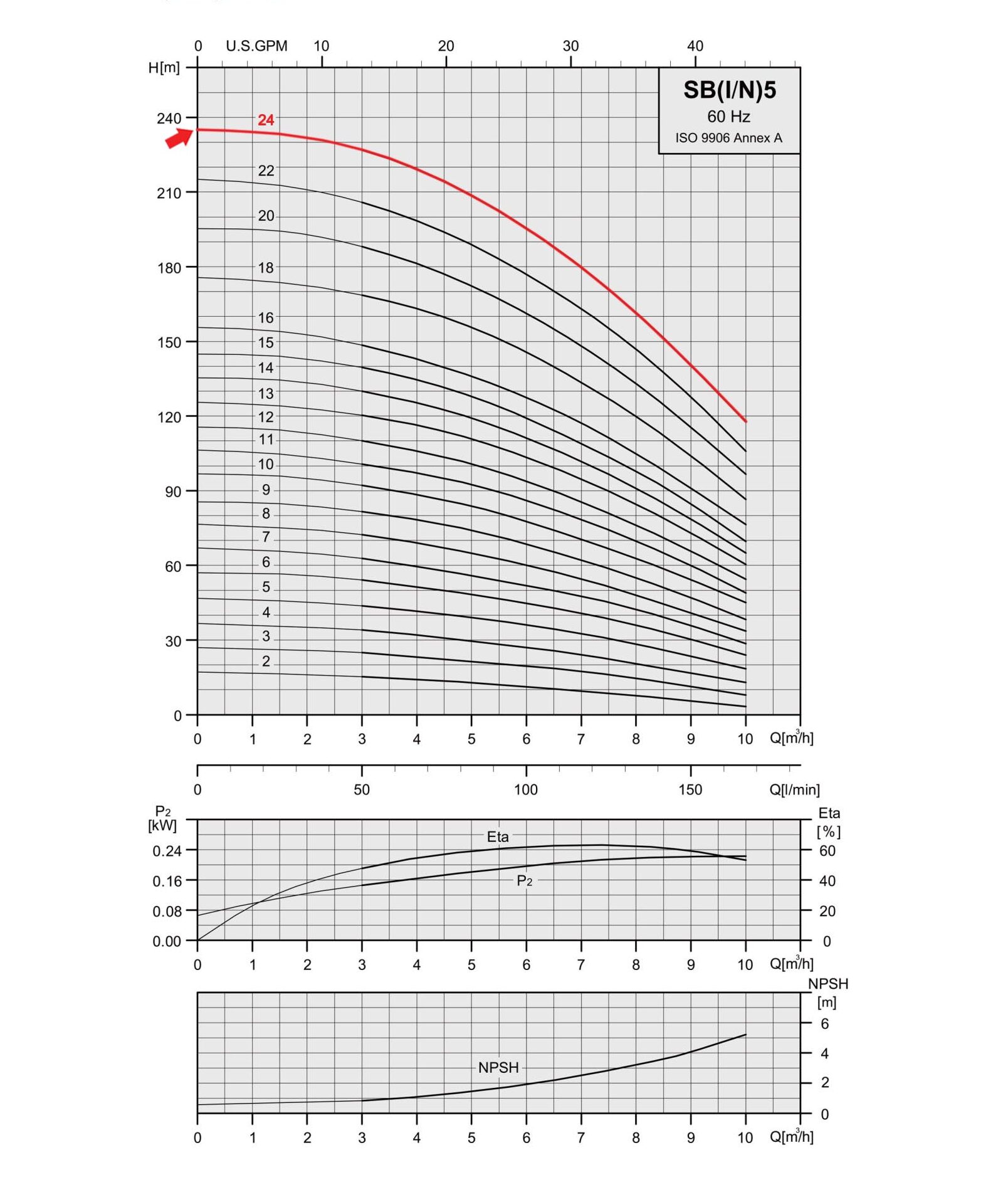

SB, SBI pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.
WATER SUPPLY AND PRESSURE BOOSTING
IRRIGATION AND AGRICULTURE
HEATING, VENTILATION AND AIR-CONDITIONING
|Manufacturer’s Warranty||1 year Limited Warranty|
|Material||Stainless Steel 304|
|Port Size (in.)||1.25|
|Volts||220/480V – Three phase – 60Hz|
|Max. Total Head (ft.)||771|
|Max. Suction Lift (ft.)||N/A|
|Suction Port (in.)||1.25|
|Discharge Port (in.)||1.25|
|Dimensions L x W x H (in.)||9.8 x 8 x 52.3|
|Product Weight (lbs.)||190.6|
|60Hz||Motor P2||Nominal current (A)||Dimension [mm]||Net weight [kg]|
|Three phase||DIN flange||Port Size||D1||D2||DIN flange|
|SBI 5-24||7.5||10||24.7/12.5||932||1337||1 1/4″||1 1/4″||235||197||86.5|
• Squirrel cage in short circuit, aluminum casing up to 22 kW, totally enclosed, fan-cooled, 2- pole standard motor.
• Standard supply Stairs motors up to 15 kW. Other motor brands for higher powers.
• Electrical data
-Enclosure class: IPSS
-Insulation class: F
• The motors have efficiency values that fall within the range normally referred to as high efficiency.
• Ambient temperature: Max. +122°F
SB (I, N) pumps can handle a wide variety of liquids, each with its own characteristic.
